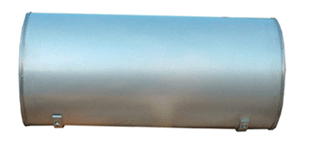

System: Jacket Type Closed Loop
Dimensions: 1200 x Ø540 mm
Weight: 60 kg (138 lb)
Working Pressure: 6 bar
Test Pressure: 12 bar
Insulation: Glasswool
Covering: Galvanized Steel or Stainless Steel
Electrical Heater: 2000 W
Corrosion Protection:
Hot Deep Galvanized & Cathodic Protection,Stainless Steel






Because the boilers are closed loop they may operate even in very cold geographic areas. Solareks BC series closed loop boilers are mostly used in cold geographic areas and the places where the mains water has a high percentage of lime.


Because the BC Series boilers are pressurized there is no need for a second boiler. Thus a more esthetic view is achieved.


BC Series boilers are pressurized and can be directly connected to water mains thus the user has the advantage of having hot water at the pressure of mains water. In order to create a more comfortable use the boiler is equipped with a thermostat resistor for use in winter. In the winter time when there is no sun light thermostat resistor heats up the water in the boiler to the required temperature.




The boilers are coated with 80 - 100 µ zinc in order to achive rustproof and increase the useful life of the boilers. In addition to that BC series boilers are protected with magnesium anodes.


BC Series boilers are insulated with glasswool in order to prevent heat losses that may occur at the sides. Heat losses are prevented with the specially designed installation kit.


Boiler is a jacket type heat exchanger, it is designed to have a more efficient heat transfer and heat transfer fluid circulation.


The boiler can be installed in two different ways. The boiler can either be under or on the roof. Regardless of the way of the installation the system is installed in a very secure practical and easy way. Solareks installation kit has an installation compatability to any kind of roof.


Extra protective elements are used in the systems in order to increase the efficiency of the boiler and protect the boiler and to create a smooth use of hot water.


2 year
